Product Summary

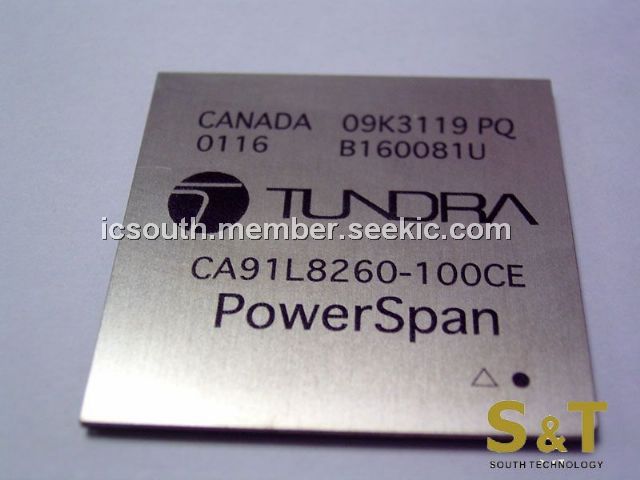

The CA91L8260-100CE is a PowerPC-to-PCI Bus Switch that bridges PCI to the PowerQUICC II (MPC8260) and the PowerPC 750, PowerPC 740, and PowerPC 603e processors. CA91L8260-100CE is available in either a single PCI or dual PCI variant. CA91L8260-100CE defines a new level of PCI bus switch flexibility.

Features

Features: (1)Single PCI PowerSpan: 64-bit/66MHz, 420 HPBGA; (2)Integrated, non-transparent PCI-to-PCI bridge in the Dual PCI PowerSpan; (3)PCI arbiters on each PCI interface; (4)Universal PCI buffers-3.3V/5V PCI signaling environment, 3.3V output buffers; (5)CompactPCI Hot Swap Friendly; (6)I20 messaging unit; (7)PCI 2.2 Specification compliant.

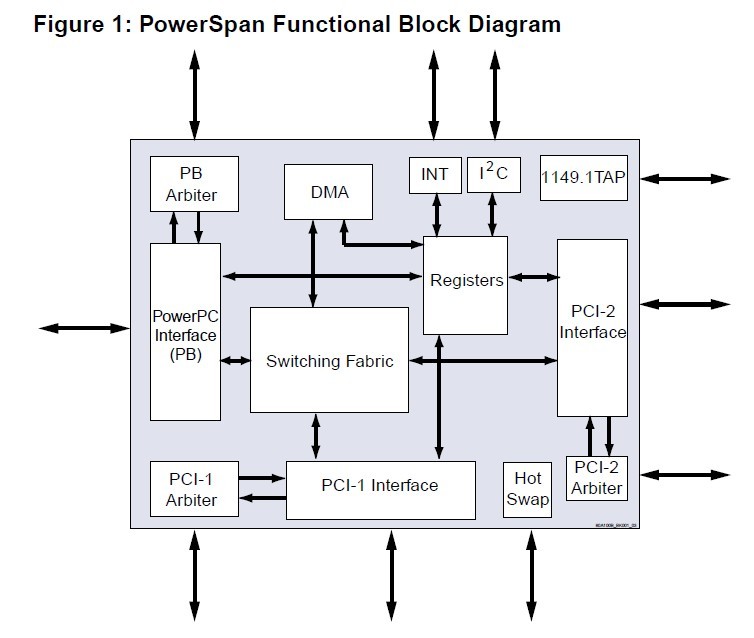

Diagrams
