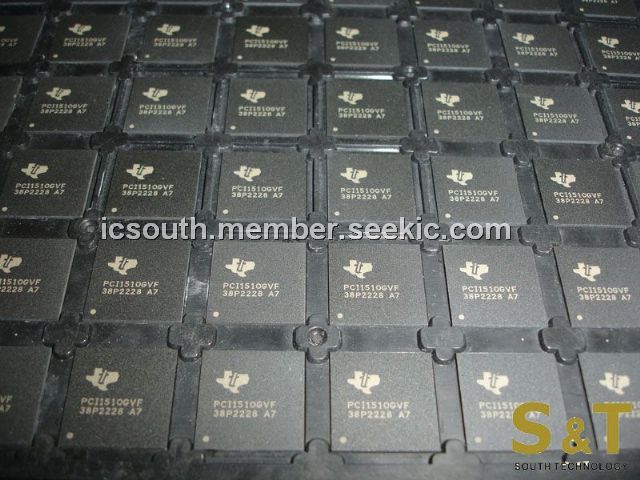

Product Summary
The PCI1510GVF is a single-slot CardBus controller. It is designed to meet the PCI Bus Power Management Interface Specification for PCI to CardBus Bridges. The device is an ultralow-power high-performance PCI-to-CardBus controller that supports a single PC card socket compliant with the PC Card Standard.
Parametrics
Absolute maximum ratings: (1)Supply voltage range:-0.5 V to 4.6 V; (2)Clamping voltage range:-0.5 V to 6 V; (3)Input clamp current, IIK (VI < 0 or VI > VCC):±20 mA ; (4)Output clamp current, IOK (VO < 0 or VO > VCC):±20 mA ; (5)Storage temperature range:-65℃ to 150℃; (6)Virtual junction temperature:150℃.
Features
Features: (1)Integrated low-dropout voltage regulator (LDO-VR) eliminates the need for an external 2.5-V power supply; (2)Mix-and-match 5-V/3.3-V 16-bit PC Cards and 3.3-V CardBus Cards; (3)A single PC Card or CardBus slot with hot insertion and removal; (4)Parallel interface to TI TPS2211A single-slot PC Card power switch; (5)Burst transfers to maximize data throughput with CardBus Cards; (6)Interrupt configurations: parallel PCI, serialized PCI, parallel ISA, and serialized ISA; (7)Serial EEPROM interface for loading subsystem ID, subsystem vendor ID, and other configuration registers; (8)Pipelined architecture for greater than 130-Mbps throughput from CardBus-to-PCI and from PCI-to-CardBus.

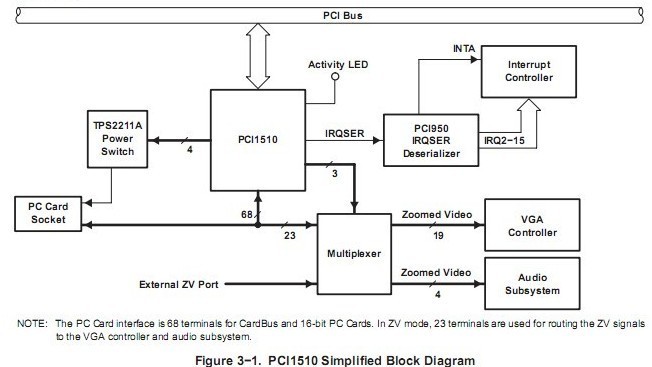

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 PCI1510GVF |
Texas Instruments |
Peripheral Drivers & Components (PCIs) Single Slot PC CardBus Controller |
Data Sheet |
