Product Summary

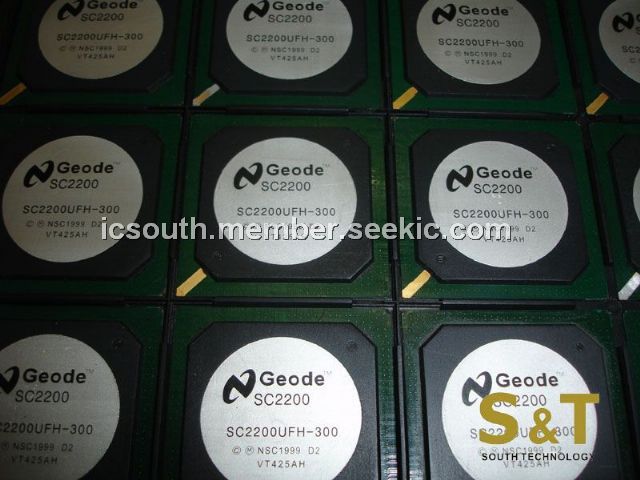

The SC2200UFH-300 is a 64bit, 300MHz processor. It is a member of the AMD Geode processor family of fully integrated x86 system chips.
Parametrics
Absolute maximum ratings: (1)Operating case temperature:-10℃ to 110℃; (2)Storage temperature:-45℃ to 125℃; (3)5V tolerant balls:-0.5V to 6.0V; (4)Others:-0.5V to 3.6V; (5)Input clamp current:-0.5mA to 10mA; (6)Output clamp current:25mA.
Features
Features: (1)32-Bit x86 processor, up to 300 MHz, with MMX instruction set support; (2)Memory controller with 64-bit SDRAM interface; (3)2D graphics accelerator; (4)CRT controller with hardware video accelerator; (5)CCIR-656 video input port with direct video for full screen display; (6)PC/AT functionality; (7)PCI bus controller; (8)IDE interface, two channels; (9)USB, three ports, OHCI (OpenHost Controller Interface) version 1.0 compliant; (10)Audio, AC97/AMC97 version 2.0 compliant; (11)Virtual System Architecture (VSA) technology support.

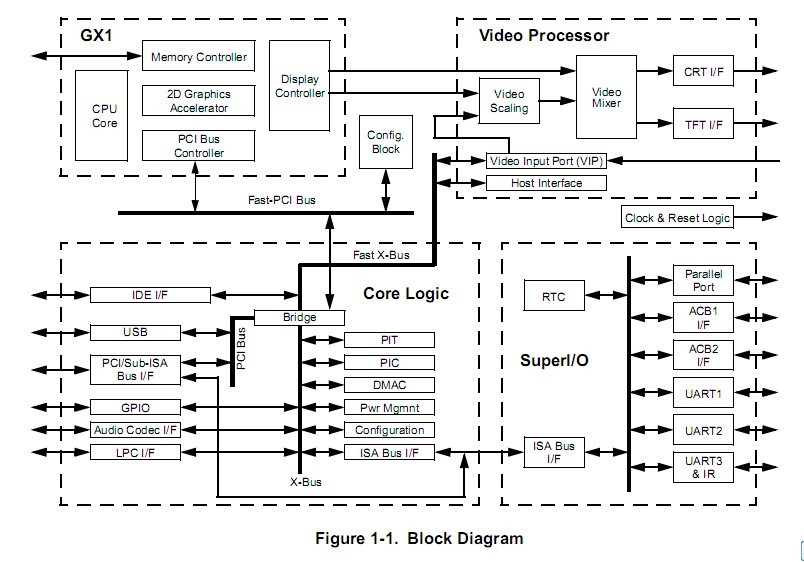

Diagrams
 |
